Waterjet spare parts                               Page 1     Page 2     Page 3     Page 4     Page 5

Special promotion of ultra high pressure stailess steel tubing and fitting up to 65,000 psi.
Large stock at whole sale price. Features cold draw, seamless and thick wall high pressure tubing.
Stock length up to 30 ft. Free cut to length. Large quanty discount available. details

Picture Part Number Descriptions of Waterjet spare parts
 end_bell
Short block intensifier
Long block intensifier
Waterjet attenuator
plate style hydraulic heat exchanger
Electric Oil Chiller
High pressure tubing
Collar
gland
Shift sensor
Shift sensor housing
shift sensor actuator
shift actuator compression spring
shift actuator pin

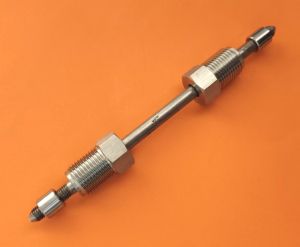

nipple
waterjet cutting head adaptor type 1
waterjet cutting head adaptor type 1
waterjet cutting head adaptor type 1



                              Page 1     Page 2     Page 3     Page 4     Page 5

Stainless steel thick wall high pressure tubing

                                                            High pressure tubing

Waterjet high pressure tubing sustains pressure of over 60,000 PSI. The tubing often has coned and threaded endings and requires collar and gland for connection.

  • tubing made with high strength stainless steel 316, 321
  • seamless cold draw stainless steel tubing
  • thick wall tubing for high pressure applications
  • tubing sizes are OD= 1/4", 3/8", and 9/16"
  • Stock tubing length from 20-25 ft (6-8meters)
  • pressure up to 60,000 PSI
  •                               High pressure tubing

    Stainless steel high pressure fittings

  • stainless steel collar and gland
  • high pressure stainless steel nipple
  • 90 degree elbow
  • straight coupling
  • for connection of tubing size OD= 1/4", 3/8", and 9/16"
  • Pressure up to 65,000 psi
  • Most common application: waterjet cutting machine
