IWM's Portable Waterjet Cutter Machine

Portable waterjet cutting machine can be loaded on a truck or a trailer so that the cutting can be done at the location where the object to be cut is located. In some cases, portable waterjet is submerged underwater to cut metal or concrete structures, such as underwater waterjet cutting of pipes or other types of applications.

The machine mainly consists of a high presssure pump, abrasive feeding system and portable rails that water jet cutting head can be mounted. The portable water tank and water pump are optional.

1. High pressure waterjet cutter pump, 380Mpa (55kpsi).
2. Abrasive feeding sub system
3. Rails for cutting circular shapes and straight lines. There are three types of basic rails.
Model 1 Pipe cutting rail, Model 2 Straight cutting rail and Model 3 circular cutting rail.

Portable waterjet is commonly used to cut pipes in the filed and to cut openings for demolishing large tanks or containers.

Portable waterjet with straight rail cuts on a large cylindrical container

Portable waterjet with pipe cutting rail cuts on a large cylidrical container

portable waterjet cut line

Portable waterjet cuts pipes on site. A small car carries waterjet cutting head and cuts around the pipe. Follow this link to learn more about waterjet pipe cutting machine.

Portable straight rails can be mounted on the roof or vertical wall of a tank for cutting holes or straight lines. With staight lines, it can form triangle, rectangle or other polygon shapes of openings.

portable waterjet cut line

The above shows straight cutting portable waterjet is used to cut on a large tank.

portable waterjet cut circle

Portable waterjet with straight rail cuts 30cm thick concrete.

Water jet cutting with high pressure is not applicable to hand held torch. The cutting head must be mounted on a motor driven rail for constant speed steady move. The speed is adjustable in order to fit the need of cutting different types of materials and different thickness.

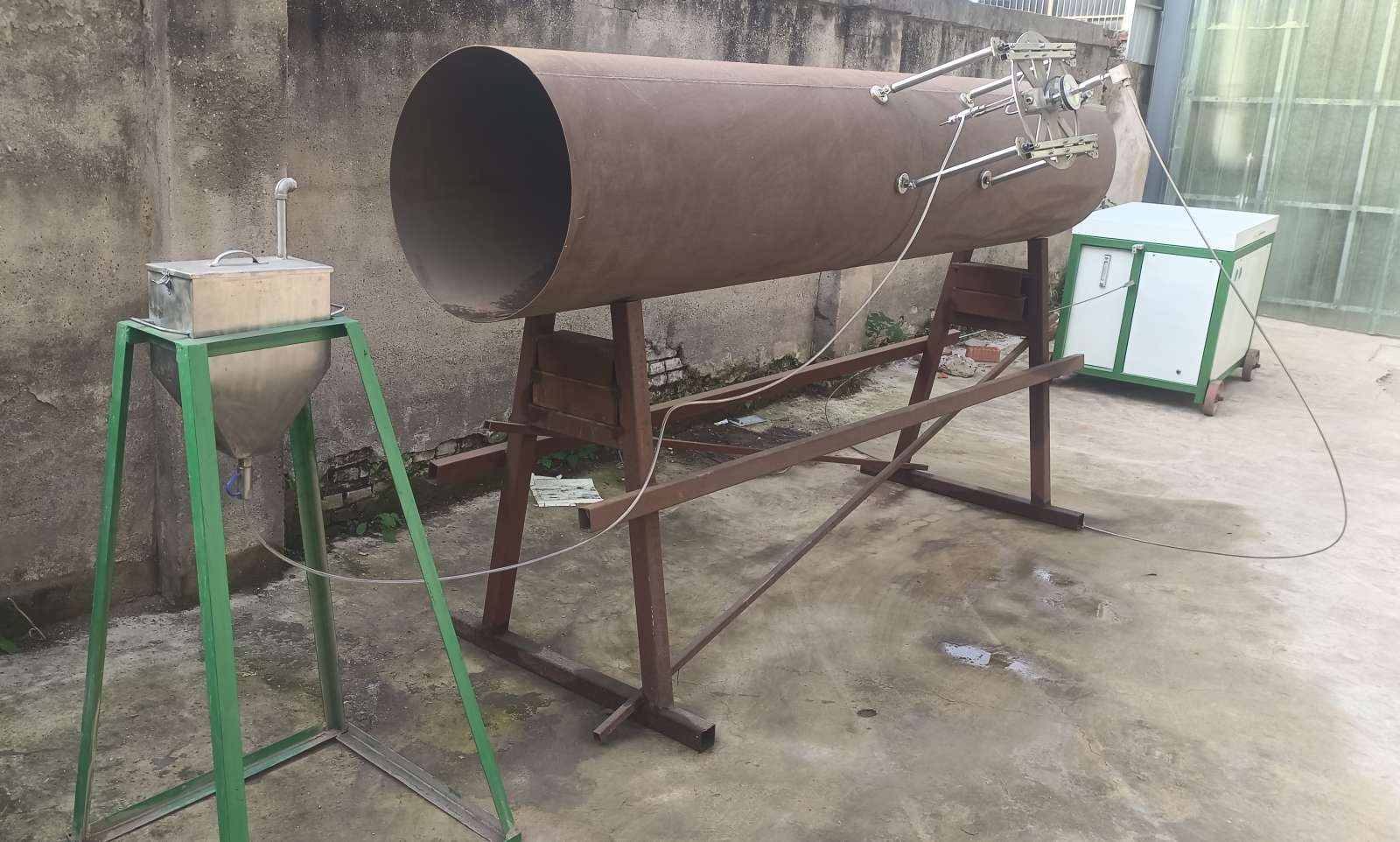

CNC controlled portable waterjet is also available. This type of portable waterjet is specialized cutting holes that can be use to connect branches to the main pipe.

CNC portable waterjet cut pipe

Videos of portable waterjet cutting machine

Portable waterjet cutting machine cuts oil tank bottom floor.

Portable water jet pipe cutting machine.

Portable water jet cuts pipes from the inside.

Portable waterjet machine dismantling large container tank.

Portable waterjet cutting on fiberglass reinforced pipe (FRP).

Portable waterjet cuts along pipe length.

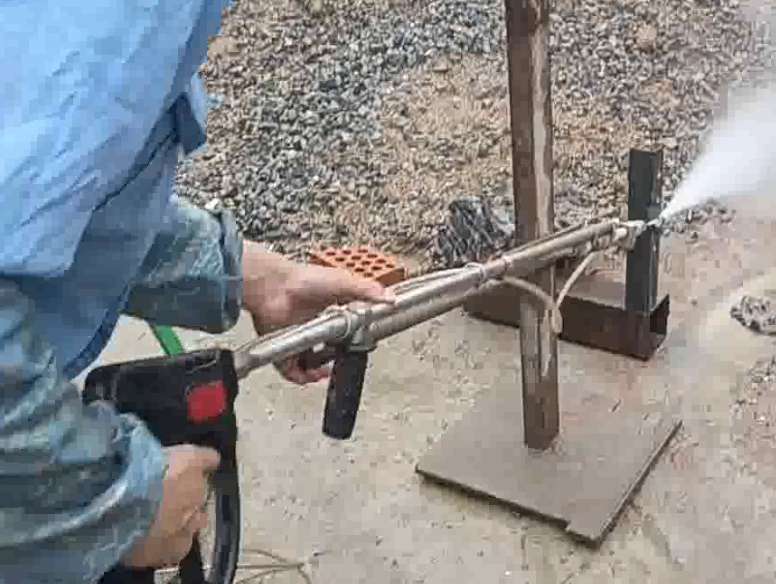

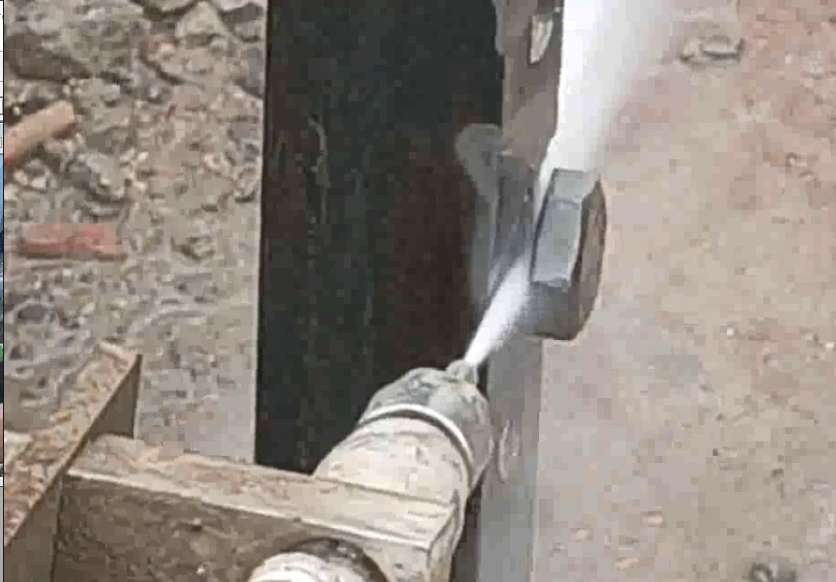

Handheld portable waterjet cuts steel bolt.

Handheld portable waterjet cuts concrete block.

Underwater cutting with portable waterjet machine

In the case of underwater portable waterjet cutting, the small car that carries cutting head is driven by a hydraulic motor. A hydraulic prower station is needed. Abrasive and water is pre-mixed in a pressure vessel, and a high pressure jet of water brings in the mixture and shoot through the nozzle to make cuts. The water pump and vessel remain above water. The cutting rail and car go underwater and driven by hydraulic power. The portable underwater waterjet cutting machine can cut metal, concrete and other types of materials.
