IWM's Robotic Waterjet Cutter Machine



Robotic waterjet cutting machine consists of industrial robot and high pressure water jet system. The 6 or more axis of robot arm carries a water jet cutting head to cut 3D parts with CNC programming.

A complete robotic waterjet machine system consists of 3 major parts:
1. High pressure waterjet cutter pump, 380Mpa (55kpsi).
2. 6-axis robot with software.
3. Cutting table with vacuum suction

Robotic waterjet cutter is mainly used to cut automobil internal parts, to cut holes, or trim the edges. Another common application of robot waterjet cutter is to cut helmet, or similar 3D products. Depends on the size of parts that are needed to cut, the model of robot (ie the radious of arm and weight the arm can carry) is selected.


robot waterjet

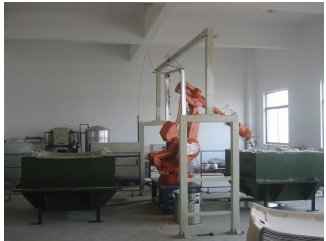

Robotic Waterjet cutting machine consists of robot, waterjet pump, and waterjet cutting head.

robot waterjet

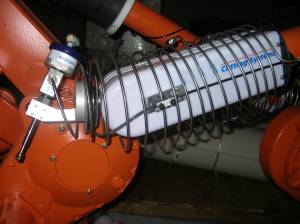

Water jet cutting head mounted on the robotic arm with flexible high pressure tubing coil.


robot waterjet robot waterjet

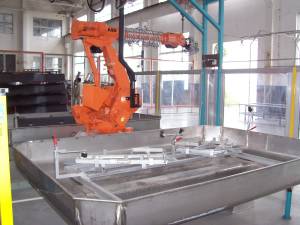

To improve efficiency, robotic waterjet machine usually has two cutting tables.


robot waterjet

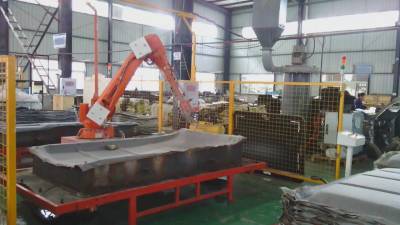

The cutting table of robotic waterje machine often has vacuum suction to hold down the work piece.


robot waterjet robot waterjet

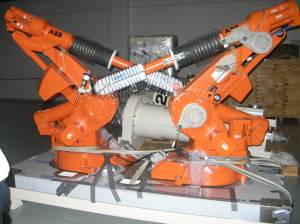

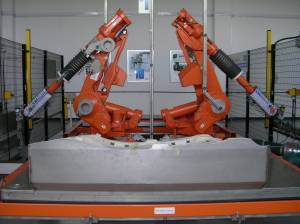

New robot waterjet cutting machines ready to ship.

The way robot waterjet cutter is trained is to use a hand held controller, dry run the cutting path and program the valve actions to let the robot remember the cutting process. Then the robot waterjet cutter can work on its own.
